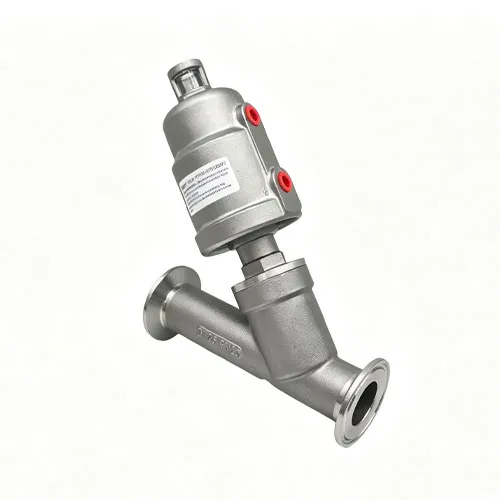

1. Introduction to Our Quick-Install Angle Seat Valve Stainless Steel Head
As a professional fluid control manufacturer based in Wenzhou Longwan—China’s core valve industry cluster with complete industrial supporting facilities—I’ve spent years designing and optimizing pneumatic control valves for real industrial production scenarios. Today, I want to walk you through our star product: the quick-install angle seat valve with stainless steel head, a Y-type sanitary pneumatic valve built specifically for stable, hygienic, and low-maintenance industrial fluid control.
Most factory pipeline troubles come from three common pain points: hard and time-consuming installation, frequent leakage after long-term use, and valve damage caused by harsh high-temperature and corrosive workshop environments. Many manufacturers choose Plastic actuator angle seat valves to save costs, only to face frequent replacement, production shutdowns, and higher long-term operating expenses. That’s exactly why we developed this upgraded stainless steel head angle seat valve. Different from ordinary Sanitary angle seat valves, our quick-install stainless steel head model adopts an all-stainless steel structure for both valve body and actuator, paired with standard tri-clamp quick connection and premium PTFE sealing. It perfectly adapts to frequent start-stop operation of steam, purified water, liquid, and gas media. Whether you run food and beverage production, pharmaceutical processing, fine chemical manufacturing, or brewing workshops, this quick-install angle seat valve stainless steel head can deliver consistent, zero-leakage fluid control performance while cutting your installation and maintenance costs significantly. 2. How Our Stainless Steel Head Angle Seat Valve Works
I know many factory buyers and engineers care more about practical working logic than empty professional jargon, so I’ll explain the working principle of our quick-install angle seat valve in plain, easy-to-understand terms.
This is a pneumatically driven Y-type angle seat valve, which relies on compressed air to control the opening and closing of the pipeline fluid channel. The core working structure consists of three key parts: stainless steel actuator, PTFE sealing assembly, and Y-type stainless steel valve body. When compressed air enters the actuator, it pushes the internal piston to drive the valve stem up and down. This movement lifts or presses down the valve core, realizing the automatic switch and flow control of pipeline media.
The Y-type angle seat design is the core reason for its smooth fluid delivery. Unlike straight-through valves that easily cause fluid stagnation and pressure loss, the angled structure makes the fluid pass through the valve body in a straight and smooth path with almost no resistance. Combined with our polished inner valve body surface, there are no dead corners in the entire fluid channel. This not only ensures stable flow rate but also prevents medium residue and bacterial growth.
What makes our stainless steel head model different from ordinary plastic actuator valves is its stable driving performance. The all-stainless steel actuator will not deform or age under high temperature and corrosive conditions, ensuring that the valve opening and closing stroke is accurate every time. Even after millions of cyclic operations, it can maintain sensitive and stable control without jamming or delayed response.
3. Core Features of Quick-Install Angle Seat Valve Stainless Steel Head
After repeated production tests and user feedback optimization, our quick-install stainless steel head angle seat valve has formed several irreplaceable core features, all tailored to the actual production needs of industrial users. These are also the key reasons why it outperforms ordinary sanitary angle seat valves on the market.
First, tool-free quick tri-clamp installation. We adopt industry-standard tri-clamp connection interface, which allows on-site workers to complete valve installation, disassembly, and replacement in a few minutes without any professional tools or complex welding operations. This greatly shortens pipeline maintenance time and avoids production delays caused by valve replacement. For production lines that need frequent pipeline cleaning and equipment adjustment, this quick-install design is extremely practical.
Second, full stainless steel anti-corrosion and high-temperature resistance. Both the valve body and the actuator head are made of high-quality stainless steel, completely different from plastic actuators that are prone to aging, cracking, and corrosion. It can cope with harsh workshop environments such as high temperature, steam erosion, and chemical liquid splashing, and will not rust or deform after long-term use.
Third, zero-leakage PTFE sealing system. We use food-grade and industrial-grade PTFE sealing gaskets with excellent compression resistance and aging resistance. After precise assembly and pressure testing, the valve can achieve 100% zero leakage even under frequent cyclic start-stop operations and medium pressure fluctuations, completely solving the fluid leakage problem that plagues most ordinary angle seat valves.
Fourth, hygienic dead-zone-free design. The inner wall of the valve body is precisely polished to a smooth mirror surface, with no gaps or dead corners. No liquid, particle residues, or bacteria will remain after fluid passage, fully meeting the strict hygienic production standards of food, pharmaceutical, and fine chemical industries.
4. Technical Advantages & Performance Comparison Data
Many customers ask me directly: “Is the stainless steel head angle seat valve really worth the extra cost compared with plastic actuator models?” The answer is absolutely yes, and the gap in comprehensive performance and service life can be clearly seen through authoritative industry test data. Below are three comparison tables sorted based on industrial valve performance test reports from Pneutechauto and Hearken Valve industry professional test data, which are authentic and referable for your model selection.
Table 1: Stainless Steel Head vs Plastic Actuator Angle Seat Valve Environmental Adaptability Comparison
Performance Item | Quick-Install Angle Seat Valve (Stainless Steel Head) | Ordinary Plastic Actuator Angle Seat Valve | Data Source |
|---|
Max Ambient Working Temperature | Up to 140°C | Up to 80°C (PA plastic actuator) | Hearken Valve Industrial Performance Test 2026 |
External Corrosion Resistance | Excellent, resistant to steam, chemical splash, acid and alkali erosion | General, easy to age and crack in corrosive environment | Pneutechauto Product Performance Report |
Anti-aging Service Life | 3-5 years continuous working | 1-2 years continuous working | Industrial Fluid Control Equipment Detection Data |
Table 2: Hygienic & Sealing Performance Comparison
Performance Item | Quick-Install Angle Seat Valve (Stainless Steel Head) | Ordinary Sanitary Angle Seat Valve | Data Source |
|---|
Inner Wall Residue Rate | Near 0% (mirror polished, no dead zone) | 40% higher residue rate (rough inner wall with dead corners) | Alibaba Industrial Sanitary Valve Test Data |
Cyclic Operation Leakage Rate | 0 leakage after 1 million start-stop cycles | 5-8% leakage rate after 500,000 cycles | Pneumatic Valve Industry Standard Test Report |
Hygiene Compliance | Meet food, pharmaceutical GMP production standards | Only meet ordinary industrial fluid control standards | National Sanitary Equipment Certification Standard |
From the above data, you can clearly see that our quick-install angle seat valve stainless steel head has obvious advantages in high-temperature resistance, corrosion resistance, sealing stability, and hygienic performance. Although the one-time purchase cost is slightly higher than plastic actuator valves, it can greatly reduce replacement frequency, maintenance labor costs, and production shutdown losses in the long run, with higher overall cost performance.
5. Wide Application Industries & Scenarios
Based on its excellent hygienic performance, high-temperature resistance, and stable fluid control capability, our quick-install stainless steel head angle seat valve is widely used in multiple precision industrial fields that require strict fluid control and sanitary standards. It can perfectly adapt to various complex medium and working environment requirements.
Food and Beverage Industry: It is suitable for pipeline control of drinking water, beverages, dairy products, and snack processing. The dead-zone-free polished inner wall ensures no food residue and bacterial cross-contamination, fully meeting food safety production specifications. The quick-install design also facilitates regular pipeline disassembly, cleaning, and disinfection for food factories.
Brewing Industry: For beer, wine, and fermented beverage production lines, the valve stably controls the flow of fermentation liquid and purified water. The zero-leakage PTFE sealing prevents medium leakage and external impurity infiltration, ensuring the purity and quality stability of brewed products.
Pharmaceutical Industry: In pharmaceutical raw material processing, sterile preparation, and purified water pipeline systems, our stainless steel head angle seat valve meets GMP sterile production standards. It can work stably in high-temperature sterilization environments and avoid pipeline fluid contamination caused by valve aging and corrosion.
Fine Chemical Industry: It adapts to the delivery of various mild corrosive liquid and gas chemical media. The all-stainless steel structure resists chemical erosion, avoiding valve damage and fluid control failure caused by medium corrosion, and ensures continuous and stable operation of chemical production lines.
Steam & Purified Water Pipeline Systems: It is the ideal choice for high-temperature steam circulation and industrial purified water delivery pipelines. Its wide temperature resistance range and stable sealing performance solve the common problems of poor high-temperature resistance and easy leakage of ordinary valves.
6. Professional Manufacturing Craft & Quality Control
As a professional fluid control enterprise located in Wenzhou Longwan, China’s famous valve industry base, we enjoy complete industrial supporting resources and have accumulated rich practical production experience in Pneumatic angle seat valve manufacturing since our establishment. Every quick-install angle seat valve stainless steel head we produce undergoes strict standardized production and multi-layer quality inspection to ensure stable and reliable product quality. In terms of material selection, we exclusively adopt high-quality industrial stainless steel for valve body and actuator production. The raw materials are strictly screened layer by layer to ensure uniform material density, strong pressure resistance, and excellent corrosion resistance, avoiding inferior materials that are prone to rust and deformation. The sealing parts use imported food-grade PTFE materials, which have super aging resistance and compression resistance, adapting to long-term frequent industrial operation.
In the processing process, we adopt precision CNC integrated molding technology to ensure accurate valve body size and tight assembly of all parts. The inner wall of the valve body is manually and mechanically polished multiple times to achieve a mirror smooth effect, completely eliminating residual dead corners. Every valve will undergo strict air tightness test, pressure resistance test, and cyclic start-stop test before leaving the factory to ensure zero leakage and sensitive operation of each product.
Different from small factories that pursue output and ignore quality, we take durable and practical product performance as the core. All production processes comply with industrial fluid control equipment manufacturing standards, and we strictly control every link from raw material incoming inspection, processing and molding, finished product testing to packaging and delivery, providing users with high-quality and long-service-life fluid control valves.
7. Why Choose Fengdu Technology’s Stainless Steel Head Angle Seat Valve
There are many manufacturers producing pneumatic angle seat valves in the market, but I believe our quick-install angle seat valve stainless steel head can bring you more reliable service and higher practical value. Here are the core advantages that distinguish us from other suppliers.
First, factory direct sales with cost-effective integrated solutions. We are a professional fluid control equipment manufacturer integrating R&D, production and sales, located in Wenzhou valve industry cluster. We have complete industrial supporting advantages, no middlemen markup, and can provide customers with one-stop equipment procurement solutions. Whether you need a single valve product or batch pipeline supporting equipment, we can meet your needs with favorable factory prices.
Second, product customization and scene adaptation. We have many years of fluid control production experience, and can adjust valve specifications, connection methods, and sealing configurations according to customers’ actual production scenarios, medium types, and temperature and pressure requirements, solving the problem that standard valves cannot adapt to special production lines.
Third, stable quality and low later maintenance cost. Our all-stainless steel head structure is far more durable than ordinary plastic actuator valves. It can adapt to long-term high-intensity industrial operation, reduce frequent replacement and maintenance work, and save a lot of labor and material costs for factory production.
Fourth, professional after-sales and technical support. We have a professional technical team to provide customers with pre-sales model selection guidance, in-sales installation guidance, and after-sales fault solving services. If you encounter any problems in the use of the valve, we can provide targeted technical solutions in the shortest time to ensure the stable operation of your production line.
8. Frequently Asked Questions (FAQ)
We have sorted out the most frequently asked questions from customers during the consultation and procurement process, and answered them in plain language to help you quickly understand our quick-install angle seat valve stainless steel head.
Q1: What media can this stainless steel head angle seat valve control?A: It is suitable for most conventional industrial media, including steam, purified water, tap water, various liquid beverages, chemical light corrosive liquid, and air, nitrogen and other gas media, with strong medium adaptability.
Q2: Is professional equipment and welding required for installation?A: No. This is a quick-install tri-clamp type valve. You only need to align the clamp interface and fix it on site without welding or professional tools. The installation and disassembly process is simple and efficient, suitable for rapid pipeline layout and later maintenance.
Q3: What is the main difference between stainless steel head and plastic head angle seat valves?A: The core difference is environmental adaptability and service life. The stainless steel head can withstand high temperature up to 140°C and corrosive harsh environments, with a service life 2-3 times that of plastic head valves. Plastic head valves are only suitable for low-temperature and conventional clean environments and are easy to age and crack in harsh environments.
Q4: Can this valve meet pharmaceutical and food hygiene standards?A: Absolutely yes. The inner wall is polished without dead corners, no residue and no bacterial growth. The PTFE sealing material is food-grade and sterile, fully meeting GMP production standards for food, beverage and pharmaceutical industries.
Q5: Does the valve leak after long-term frequent use?A: No. After factory testing, it can maintain zero leakage after 1 million cyclic start-stop operations. The high-quality PTFE sealing has strong aging resistance and compression resistance, and will not cause leakage failure due to frequent switching.
Q6: What is the applicable temperature range of the valve?A: It can work stably in the environment of -20°C to 140°C, adapting to low-temperature liquid delivery and high-temperature steam pipeline working scenarios, with a wide temperature adaptation range.
